DELL ULTRASHARP 27 THUNDERBOLT HUB MONITOR

Number of Screens
1
Screen Size Class
55″
Viewable Screen Size
54.6″
Screen Mode
4K UHD
Panel Technology
In-plane Switching (IPS) Technology
Response Time
8 ms
Response Time Details
8ms GTG
Aspect Ratio
16:9
Pixel Pitch
0.3150 mm x 0.3150 mm
Horizontal Viewing Angle
178°
Vertical Viewing Angle
178°
Mount Type
Panel Mount
Backlight Technology
Edge LED
Features
Cable Lock Slot
BFR Free
PVC Free
Security Lock
Arsenic-free Glass
Easy Arrange
Flicker-free
Anti-glare
Mercury-free
Low Blue Light
Glass Hardness
3H
Active Display Area (H x V)
1209.60 mm x 680.40 mm
Video
Maximum Resolution
3840 x 2160
Standard Refresh Rate
60 Hz
Colour Supported
1.07 Billion Colours
Native Contrast Ratio
1,200:1
Brightness
400 cd/m2
Colour Gamut
72% NTSC
Maximum Preset Resolution
3840 x 2160 at 60 Hz
Pixel Per Inch (PPI)
81
Audio
Number of Speakers
2
Speakers
Yes
Interfaces/Ports
Connectivity
1 x DP 1.4 (supports 2 x Display 4k@60Hz with DSC)
1 x DP Out (support MST)
1 x USB Type-C upstream (Alternate mode with DisplayPort 1.4, Power Delivery PD up to 90W)
1 x USB Type-C 3.2 Gen 1 (5 Gbps) downstream (15 W)
2 x HDMI 2.0
2 x USB-A 3.2 Gen 1 (5 Gbps) downstream
1 x USB-B 3.2 Gen 1 (5 Gbps) upstream
1 x Analog 2.0 audio line out (3.5 mm jack)
1 x RJ45
1 x RS232
USB Type-C (Power Delivery)
90 W
Audio Line Out
Yes
Built-in Devices
Built-in Devices
USB Hub
Environmental Conditions
Operating Temperature Range
0°C to 40°C
Non-operating Temperature Range
-20°C to 60°C
Operating Humidity Range
10% to 80% (Non-condensing)
Non-operating Humidity Range
5% to 90% (Non-condensing)
Maximum Operating Altitude
5 km
Maximum Non-operating Altitude
12.19 km
Power Description
Operating Power Consumption
77.10 W
Standby Power Consumption
500 mW
Off-Mode Power Consumption
300 mW
Energy Efficiency Class (till 28th February 2021)
F
Frequency
50 Hz
60 Hz
Maximum Power Consumption
300 W
Voltage Current
1.50 Ah
Physical Characteristics
VESA Mount Compatible
Yes
VESA Mount Standard

Diagonal Viewing Size
27″
Preset Display Area (H x V)
596.74 mm x 335.66 mm
23.49″ x 13.22″
200,301.74 mm2 (310.47 inches2)
Panel Type
IPS Black Technology
Display Screen Coating
Anti-Glare with 3H hardness
Maximum Preset Resolution
2560 x 1440 at 120 Hz
Viewing Angle
178°vertical / 178°°horizontal
Pixel Pitch
0.2331 mm x 0.2331 mm
Pixel Per Inch (PPI)
108.97
Contrast Ratio
2000 to 1 (typical)
Aspect Ratio
16:9
Backlight Technology
LED Edgelight System
Brightness
350 cd/m2 (typical)
Response Time
8 ms (Normal)
5 ms (Fast)
HDR Ready
No
Ambient Light Sensor
Yes, auto brightness and color temperature adjustmemt
color support
1.07 billion colors
Color Gamut
100% sRGB, 100% BT.709, 98% Display P3, 98% DCI-P3, Delta E < 2 (average) (sRGB, BT.709, Display P3, DCI-P3)

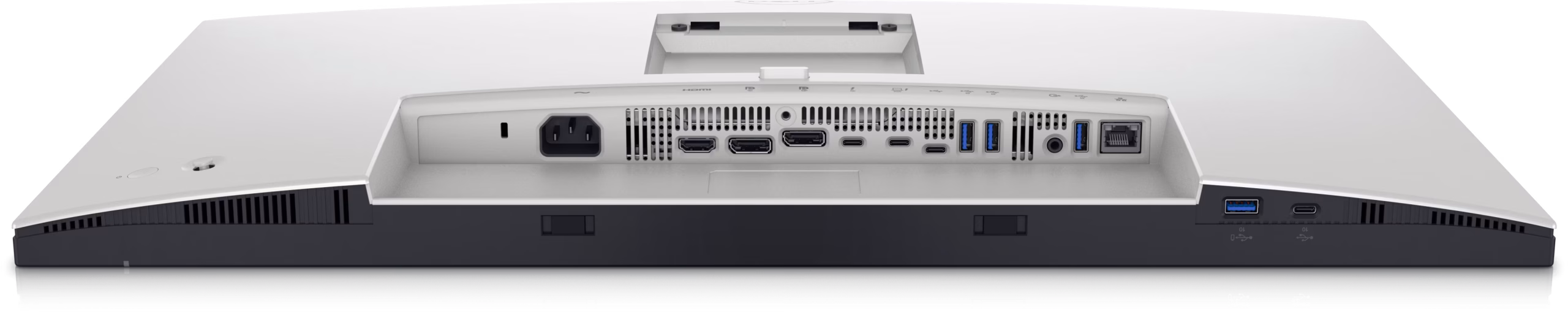

Interfaces
1 x DisplayPort 1.4 (DRR for Microsoft Windows) (Supports 2 x QHD 120Hz 8 bit)
1 x DisplayPort 1.4 (Out)
1 x HDMI (HDCP 1.4)(Supports up to QHD 2560 x 1440 120Hz TMDS, VRR as per specified in HDMI 2.1)
1 x ThunderboltTM 4 downstream port (15W) for daisy chaining
1 x ThunderboltTM 4 upstream port (Video + Data). Alternate mode with DisplayPort 1.4, power delivery up to 90W.
1 x USB-Type C upstream port (data only) (SuperSpeed USB 10 Gbps, USB 3.2 Gen 2
3 x USB Type-A downstream port (SuperSpeed USB 10 Gbps, USB 3.2 Gen 2)
1 x Audio line out
1 x RJ45 Ethernet port, 2.5GbE
1 x USB Type-A downstream port (SuperSpeed USB 10 Gbps, USB 3.2 Gen 2) with BC1.2 power charging
1 x USB Type-C downstream port (SuperSpeed USB 10 Gbps, USB 3.2 Gen 2) with power charging (15W)
Adjustability
Height, Tilt, Swivel, Pivot
Height adjustable
150 mm
Tilt
-5°/+21°
Swivel
-45°/+45°
Pivot
-90°/+90°
PbP / PiP
Yes
Keyboard, Video and Mouse ( KVM)
Yes
Daisy Chain Availability
Yes
Audio Output
1 x Audio line-out
Built-in Speaker
No
Security
Security lock slot (cable lock sold separately)
Anti-theft stand lock slot (to lock stand to monitor using screw)
Compliant Standards
ENERGY STAR certified Monitor.
EPEAT registered where applicable.
EPEAT registration varies by country.
See https://www.epeat.net for registration status by country.
TCO Certified & TCO Certified Edge.
RoHS Compliant.
BFR/PVC Free monitor (excluding external cables).
Arsenic-Free glass and Mercury-Free for the panel only
Flat Panel Mount Interface
VESA mounting holes (100 mm x 100 mm – behind attached VESA Cover)
What’s Included
Monitor, Stand Riser, Stand Base, Quick setup guide, Safety, Environmental and Regulatory Information, Factory calibration report
Cables Included
1 x Power cable
1 x DisplayPort 1.4 cable – 1.8 m
1 x USB Type-A to USB Type-C Gen 2 cable – 1 m
1 x ThunderboltTM 4 cable – 1 m
Voltage Required
100 VAC to 240 VAC / 50 Hz or 60 Hz ± 3 Hz / 2.65 A (typical)
Power Consumption (On mode)
24.4 W
Power Consumption (Max)
225 W
Power Consumption Stand by
0.5 W
Power Consumption (Off Mode)
0.3 W
Networked standby mode
1.5 W
Dell Display Manager Compatibility
Yes , Easy Arrange, Other key features
Temperature Range
Operating: 0°C to 40°C (32°F to 104°F)
Non-operating: –20°C to 60°C (–4°F to 140°F)
Humidity Range
Operating: 10% to 80% (non-condensing)
Non-Operating: 5% to 90% (non-condensing)
Altitude
Operating: 5000 m (16404 ft) max
Non-Operating: 12192 (40000 ft) max
Physical Characteristics
Height with stand (Compressed ~ Extended)
385.58 mm ~ 535.58 mm
Width with stand
612.24 mm
Depth with stand
192.28 mm
Height without stand
352.51 mm
Width without stand
612.24 mm
Depth without stand
50.12 mm
Weight (panel only – for VESA mount)
5.23 kg
Weight (with stand assembly and cables)
7.37 kg
Weight (with packaging)
10.21 kg
Warranty
Specifications – Service / Support Details
3-Year Advanced Exchange Service and Premium Panel Exchange
